Compact and versatile speakers designed for space-constrained applications. With high sensitivity, reliable acoustic performance, and flexible tuning options, VECO’s micro speakers support a wide range of consumer electronics, automotive, industrial, and smart device applications.
Customized designs for speaker assembly and speaker enclosure are welcome.
Dimension (Dia. x Depth) : 16x3.2 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 0.5 Normal / 0.8 Max
FO (+/- 20%Hz) : 800
SPL (dB) : 80
Frequency Range (Hz) : 450~20000 Hz
Type (Out-looking) : Round

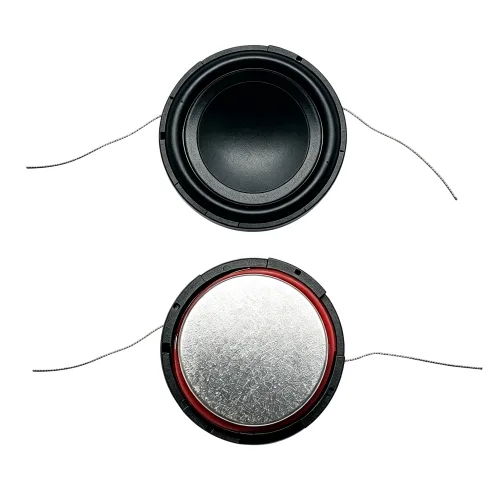

Dimension (Dia. x Depth) : 18x5.0 mm
Impedance (Ω+/- 15%) : 4 ohm
Power Rating Watts : 1.0 Normal / 1.5 Max
FO (+/- 20%Hz) : 380
SPL (dB) : 79
Frequency Range (Hz) : FO~20000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 20x14x3.5 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 0.5 Normal / 1.0 Max
FO (+/- 20%Hz) : 750
SPL (dB) : 94
Frequency Range (Hz) : FO~20000 Hz
Type (Out-looking) : Oval
Dimension (Dia. x Depth) : 20x2.45 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 0.3 Normal / 0.5 Max
FO (+/- 20%Hz) : 580
SPL (dB) : 74
Frequency Range (Hz) : 350~60000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 23x5.3 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 0.5 Normal / 1.0 Max
FO (+/- 20%Hz) : 670
SPL (dB) : 81
Frequency Range (Hz) : 400~20000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 25x9.4 mm
Impedance (Ω+/- 15%) : 4 ohm
Power Rating Watts : 3.0 Normal / 3.5 Max
FO (+/- 20%Hz) : 320
SPL (dB) : 81
Frequency Range (Hz) : FO~20000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 30x4.9 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 0.5 Normal / 1.0 Max
FO (+/- 20%Hz) : 620
SPL (dB) : 84
Frequency Range (Hz) : FO~6000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 32x14.0 mm
Impedance (Ω+/- 15%) : 4 ohm
Power Rating Watts : 3.0 Normal / 4.0 Max
FO (+/- 20%Hz) : 300
SPL (dB) : 82
Frequency Range (Hz) : FO~20000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 36x15.5 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 2.0 Normal / 3.0 Max
FO (+/- 20%Hz) : 320
SPL (dB) : 86
Frequency Range (Hz) : 200~20000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 36x4.8 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 1.5 Normal / 2.0 Max
FO (+/- 20%Hz) : 600
SPL (dB) : 92
Frequency Range (Hz) : FO~14000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 40x19.0 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 3.0 Normal / 4.0 Max
FO (+/- 20%Hz) : 170
SPL (dB) : 86
Frequency Range (Hz) : 120~15000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 40x5.0 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 0.5 Normal / 1.0 Max
FO (+/- 20%Hz) : 500
SPL (dB) : 82
Frequency Range (Hz) : 300~13000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 40x19.2 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 3.0 Normal / 4.0 Max
FO (+/- 20%Hz) : 250
SPL (dB) : 83
Frequency Range (Hz) : FO~20000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 45x8.5 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 0.8 Normal / 2.0 Max
FO (+/- 20%Hz) : 580
SPL (dB) : 90
Frequency Range (Hz) : FO~4500 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 45x10.2 mm
Impedance (Ω+/- 15%) : 4 ohm
Power Rating Watts : 5.0 Normal / 6.0 Max
FO (+/- 20%Hz) : 450
SPL (dB) : 84
Frequency Range (Hz) : FO~4000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 46x20.0 mm
Impedance (Ω+/- 15%) : 4 ohm
Power Rating Watts : 10.0 Normal / 12.0 Max
FO (+/- 20%Hz) : 220
SPL (dB) : 85
Frequency Range (Hz) : FO~20000 Hz
Type (Out-looking) : Round
Dimension (Dia. x Depth) : 58x19.5 mm
Impedance (Ω+/- 15%) : 8 ohm
Power Rating Watts : 6.0 Normal / 7.0 Max
FO (+/- 20%Hz) : 450
SPL (dB) : 88
Frequency Range (Hz) : 250~20000 Hz
Type (Out-looking) : Round
